Savox - Servo - SG-1212MG - Digital - High Voltage - Coreless Motor

Savox - Servo - SG-1212MG - Digital - High Voltage - Coreless Motor - Metal Gear

Savöx

SG-1212MG

not in stock

€ 69,95 € 57,81 excl. VAT

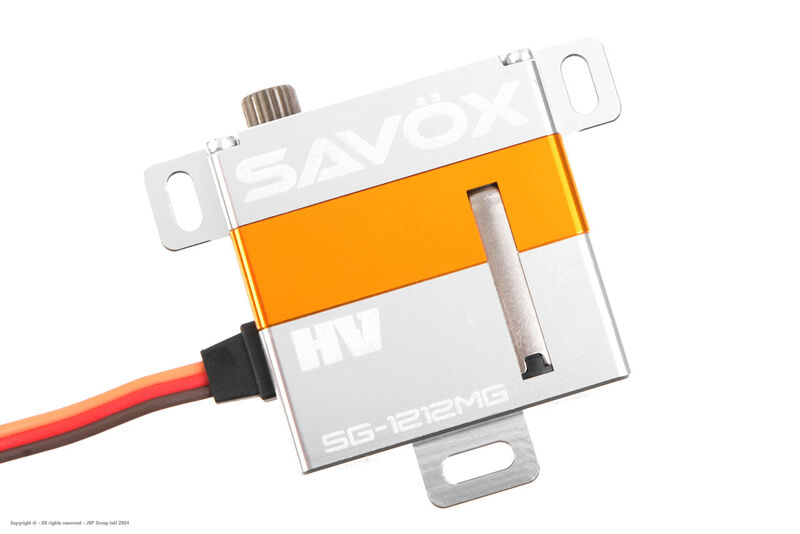

Servo - SG-1212MG - Digital - High Voltage - Coreless Motor - Metal Gear

The Savox SG-1212MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. The ultra slim profile is designed for thin glider wings.

Features:
• Torque @ 6V - 4.0kg
• Torque @ 7.4V - 5.0kg
• Torque @ 8.4V - 6.0kg
• Speed @ 6V - .14sec/60 deg
• Speed @ 7.4V - .10sec/60 deg
• Speed @ 8.4V - .09sec/60 deg

General Info

Item Nr: SG-1212MG

Barcode: 4710006993592,00

Brand: Savöx

Servo - Dimensions

Servo Type: Low Profile Servo

Spline Type: 21T Spline

Length (mm): 30,00

Width (mm): 30,00

Height (mm): 10,00

Weight (g): 27,00

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,14

Speed 60°/Sec @ 7.4V: 0,10

Speed 60°/Sec @ 8.4V: 0,09

Torque kg/cm @ 6.0V: 4,00

Torque kg/cm @ 7.4V: 5,00

Torque kg/cm @ 8.4V: 6,00

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: Coreless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Aluminium Case

Connector: JR Universal + Colored Lead
