Savox - Servo - SC-1267SG+ - Digital - High Voltage

Savox - Servo - SC-1267SG+ - Digital - High Voltage - Coreless Motor

Savöx

SC-1267SG+

not in stock

€ 83,95 € 69,38 excl. VAT

Servo - SC-1267SG+ - Digital - High Voltage - Coreless Motor

The SC-1267SG+ servo offers you the complete package. With good speed and torque, this servo makes a great replacement for those looking to upgrade from a standard servo.

Features:
• Super strong and precision made unique steel gears provide durability and survive heavy use.
• Capable of HV operation.
• Good speed and torque for numerous applications.
• Great replacement for RTR vehicles and other applications.

Specifications:
• Torque @ 6v - 13.0kg
• Torque @ 7.4v - 20.0kg
• Speed @ 6v - 0.11 sec/60 deg
• Speed @ 7.4v - 0.095 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Weight: 62.0g

General Info

Item Nr: SC-1267SG+

Barcode: 4710006994710

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,3

Width (mm): 20,2

Height (mm): 37,2

Weight (g): 62

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,11

Speed 60°/Sec @ 7.4V: 0,1

Torque kg/cm @ 6.0V: 13

Torque kg/cm @ 7.4V: 20

Quiescent Current (mA): 5

Rated Current (mA): 150

Blocking Current (mA): 3000

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 7.4V

Servo Motor: Coreless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Steel Gears

Servo Case: Aluminium + Composite Case

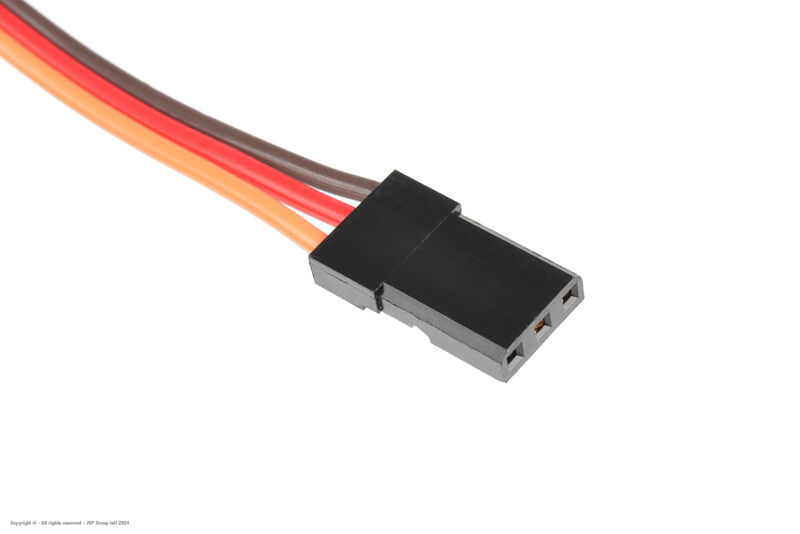

Connector: JR Universal + Colored Lead
