Savox - Servo - SB-2272MG+ - Digital - High Voltage - Brushless Motor

Savox - Servo - SB-2272MG+ - Digital - High Voltage - Brushless Motor - Metal Gears

Savöx

SB-2272MG+

>10 in stock

€ 101,95 € 84,26 excl. VAT

Servo - SB-2272MG+ - Digital - High Voltage - Brushless Motor - Metal Gears

The Savox SB-2272MGP High Voltage Brushless Digital Servo combines a brushless motor and metal gears to ensure long lasting performance. The incredible speed of this servo makes it ideal for use with gyros."Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:
• Metal Gear train for extended life and durability.
• Brushless motor for smooth operation and efficiency.
• Ideal for helicopter use due to its amazing speed.

Specifications:
• Torque/Speed @ 6v - 5.0kg, 0.045 sec/60 deg
• Torque/Speed @ 7.4v - 7.0kg, 0.032 sec/60 deg
• Torque/Speed @ 8.4v - 10.0kg, 0.028 sec/60 deg

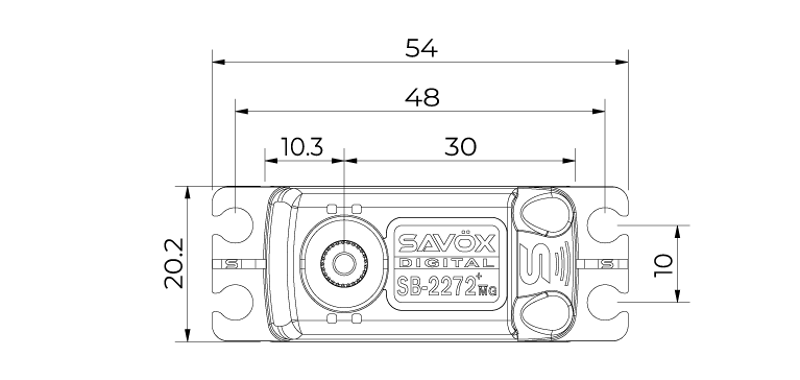

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 69g

General Info

Item Nr: SB-2272MG+

Barcode: 4710006994215

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,3

Width (mm): 20,2

Height (mm): 38,7

Weight (g): 69

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,05

Speed 60°/Sec @ 7.4V: 0,03

Speed 60°/Sec @ 8.4V: 0,03

Torque kg/cm @ 6.0V: 5

Torque kg/cm @ 7.4V: 7

Torque kg/cm @ 8.4V: 10

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: Brushless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
