Savox - Servo - SA-1256TG+ - Digital - Coreless Motor

Savox - Servo - SA-1256TG+ - Digital - Coreless Motor - Titanium Gear

Savöx

SA-1256TG+

>10 in stock

€ 77,95 € 64,42 excl. VAT

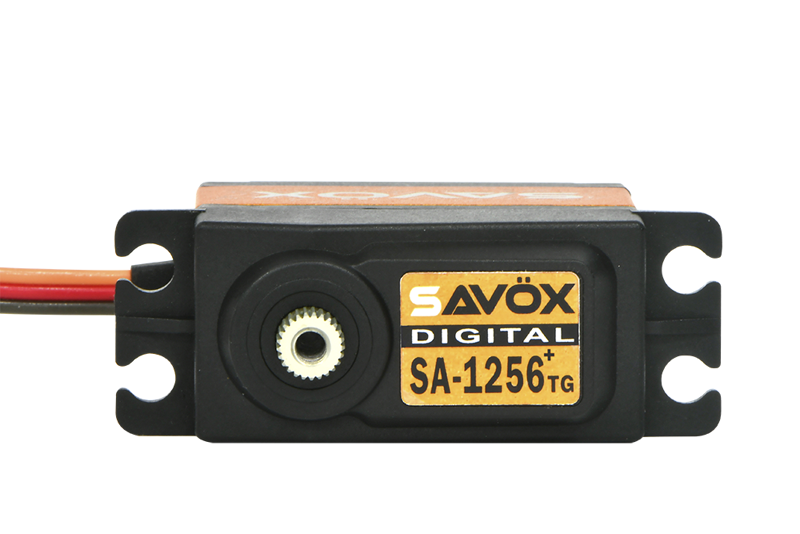

Servo - SA-1256TG+ - Digital - Coreless Motor - Titanium Gear

The SA-1256TG Plus servo is perfect for those who are looking for a big upgrade for RTR servos. SA series servos feature minimized backlash, making them ideal for use on flying surfaces of RC planes."Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

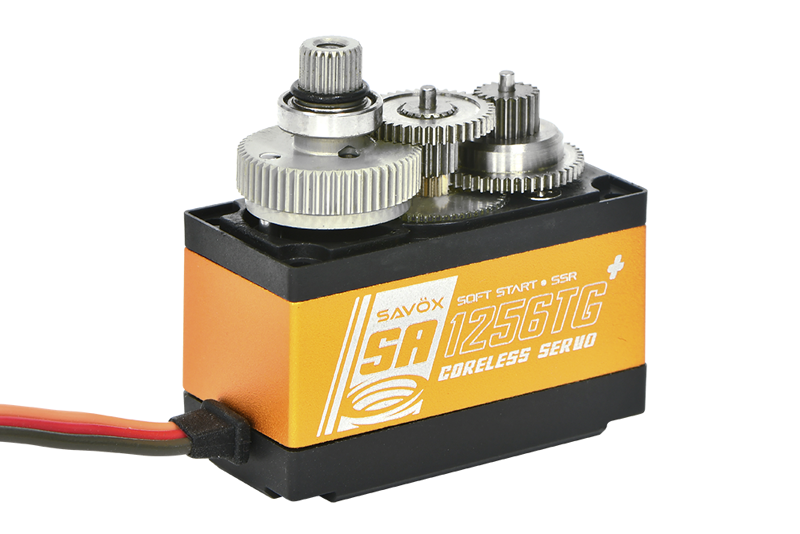

• Titanium gears ensure long life, durability, and lighter weight.
• Minimized backlash for precision aerobatic airplane use.
• Aluminum middle case to help with cooler operating temperatures.

Specifications:
• Torque @ 4.8v - 16.0kg
• Torque @ 6v - 20.0kg
• Speed @ 4.8v - 0.18 sec/60 deg
• Speed @ 6v - 0.15 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Weight: 64g

General Info

Item Nr: SA-1256TG+

Barcode: 4710006994147,00

Brand: Savöx

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,30

Width (mm): 20,00

Height (mm): 37,20

Weight (g): 64,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,18

Speed 60°/Sec @ 6.0V: 0,15

Torque kg/cm @ 4.8V: 16,00

Torque kg/cm @ 6.0V: 20,00

Quiescent Current (mA): 5,00

Rated Current (mA): 120,00

Blocking Current (mA): 5000,00

Servo - Technology

Technology: Digital

Operating Voltage (V): 4.8V - 6.0V

Servo Motor: Coreless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Titanium Gears

Servo Case: Aluminium + Composite Case

Connector: JR Universal + Colored Lead
